The fastest way to get started with off-grid mesh radio: a complete three-node MeshCore network in a box. Two GPS-equipped, battery-powered client nodes travel with you — one for each person — while a dedicated repeater extends your range from a window, rooftop, or hilltop. You'll see encrypted messages and position reports hopping across a real mesh from day one. No cell towers, no internet, no subscriptions.

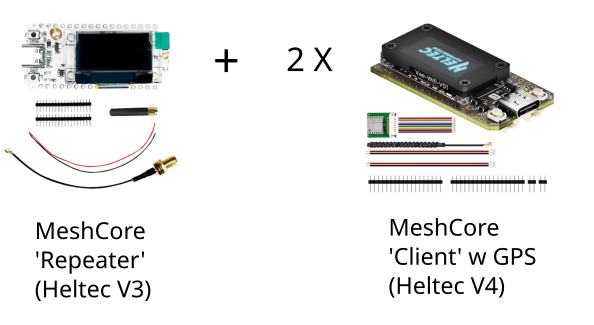

2× Client node (Heltec WiFi LoRa 32 V4) — MeshCore companion firmware:

• ESP32-S3 dual-core microcontroller, SX1262 LoRa radio (915 MHz, up to 28dBm TX)
• Quectel L76K GNSS (GPS) module for live position reporting on the mesh
• Rechargeable battery — runs untethered for days of normal mesh use
• OLED display, USB-C charging, SMA LoRa antenna + GNSS antenna
• USB-C cable included with each node

1× Repeater node (Heltec WiFi LoRa 32 V3) — MeshCore repeater firmware:

• ESP32-S3 microcontroller, SX1262 LoRa radio (915 MHz)
• 0.96" OLED display showing repeater status
• USB-C powered — plug it in near a window (or up high) and leave it on
• SMA LoRa antenna, USB-C cable, and charger dongle included

How it works: The two V4 clients come pre-loaded with MeshCore companion firmware — pair your phone to one over Bluetooth and you can exchange end-to-end encrypted messages and watch each other's GPS positions on the map. The V3 comes pre-loaded with MeshCore repeater firmware: unlike a client, its whole job is to relay traffic, so parking it in a window or on a rooftop meaningfully stretches how far apart the two clients can roam. This is MeshCore's core architecture — dedicated repeaters in good locations, lightweight clients in your pocket — and your kit demonstrates it out of the box.

• Range: 1–5 km line-of-sight per hop (varies with terrain and antenna placement); the repeater doubles your effective client-to-client range
• Frequency: 915 MHz (US ISM band)
• Works with the wider MeshCore network — your three nodes are the seed of a neighborhood-scale mesh
