Rook v4

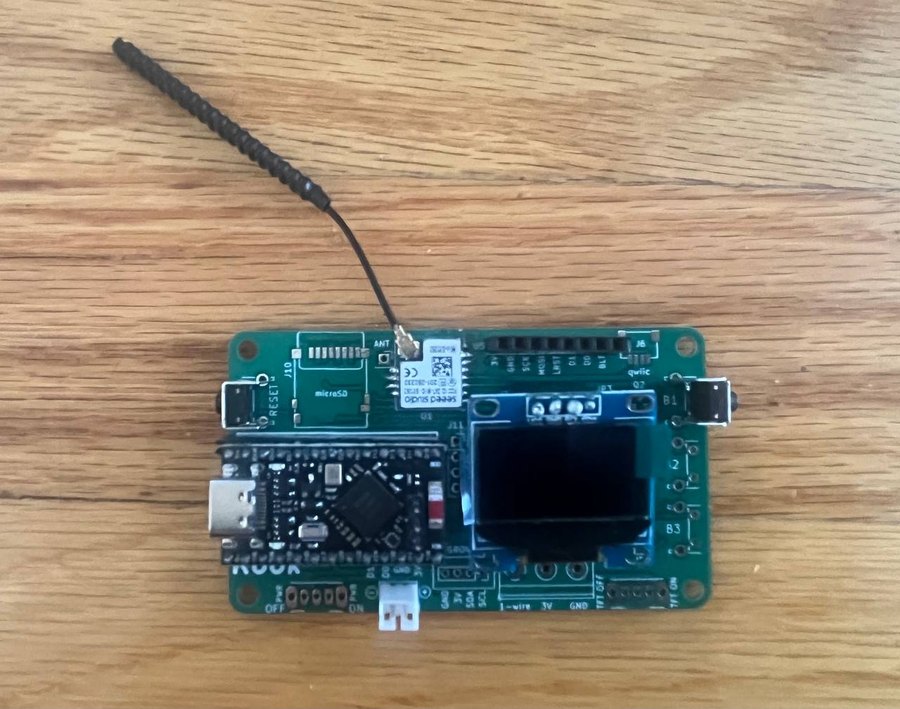

Rook v4 — assembled
$65.00
Built, tested, and flashed with MeshCore firmware (915 MHz). Power it up
and it joins the mesh.
- Assembled and functionally tested
- MeshCore firmware pre-loaded
- Ready to deploy as a node or repeater

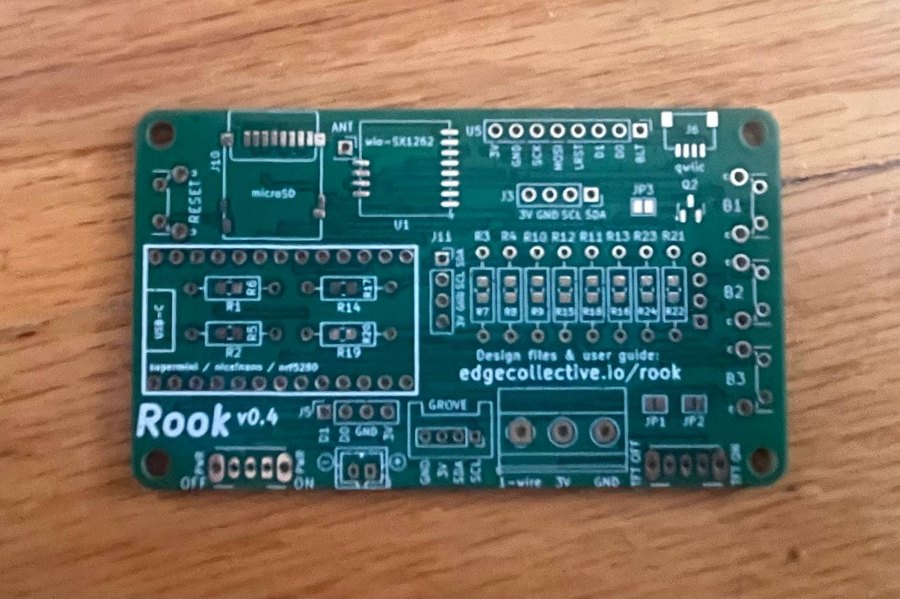

Rook v4 — bare PCB
$10.00
The board on its own, unpopulated. For people who want to source their own
parts, modify the design, or build a few.
- Bare, unpopulated PCB
- No components, no firmware
- Schematic and layout are open — see below
rook is our small, low-power LoRa board, designed for nodes that have to sit outside on a battery and keep reporting — mesh repeaters, remote sensors, and anything that needs to talk a long way without cell service or WiFi.
It is the board inside the Mesh Radio Water Level Kit, and it runs MeshCore firmware out of the box.
Two ways to buy:
- Assembled — built, tested, and flashed. The right choice if you want a working node.
- Bare PCB — for people who solder, want to change the design, or need a handful of boards at low cost.
Open hardware. Schematics, layout and firmware live at
github.com/edgecollective/rook — the v4
design files are under hardware/v0.4/. Build your own, fork it, improve it.
Firmware builds for the board are collected on the rook page.
